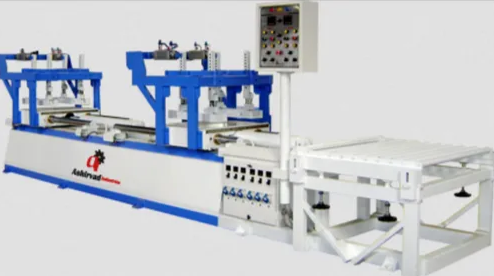

Reciprocating Hydraulic, Pneumatic Actuating Mechanical Gripper Type
This machine is suitable for producing G.R.P. (Glass Reinforced Plastic) Sections in different shapes & sizes like Angle sections, ‘C’ Channels, Hollow Rectangular and Circular-Tube Sections, Solid Rods etc.
Due to its specific angular lever clamping mechanism in dynamic action this is more preferable for working with thin wall hollow profiles compare to direct acting hydraulic clamping.
As well as more flexible for easy production adjustment while using multiple profiles with different height
Technical Specifications
Model AIHP-PNGR-06 AIHP-PNGR-08 AIHP-PNGR-10 AIHP-PNGR-12
Pulling Capacity 6000 kgf. 8000 kgf. 10000 kgf. 12000 kgf.
Product Size
Width X Height 350 X 100 500 X 150 600 X 150 650 X 200
Pulling Speed mm / min 80 - 1400 80 - 1400 80 - 1200 80 - 1200
Gripper Length 600 mm 650 mm 650 mm 650 mm
No. of Grippers 1 - 2 2 - 3 2 - 3 2 - 4
Heating Zone 4
[ 16 Amp. Each ] 6 – 9
[ 16 Amp. Each ] 6 – 9
[ 16 Amp. Each ] 6 – 12
[ 16 Amp. Each ]
Moving Puller Size
Width X Length mm 800 X 650 800 X 650 800 X 650 800 X 650 & 1000 X 650
Puller Stroke in mm 700 800 800 800
Die Clamping Area
Width X Length mm 800 X 1000 1000 X 1000 1000 X 1000 1000 X 1000 & 1200 X 1000
Electrical Power Req. 1.6 kW. 2.2 kW. 3.0 kW. 3.7 kW.
Compressed Air Req.
4.5 kg/cm² 4 - 8 CFM 6 - 9 CFM 6 - 9 CFM 6 - 12 CFM
Overall Dimensions
L X W X H Meter 6 X 1 X 1.5 6.2 X 1.2 X 1.6 6.2 X 1.2 X 1.6 6.2 X 1.4 X 1.6
