Ashirvad Engineering
Established since 1996, with the aim to manufacture ceramic machinery, after increase market segment and customer base the company has grown as a manufacturer of composites machinery in 1999.
With Innovative approach and continuous efforts in application analysis and technical support, the company emerged as a leading supplier of Pultrusion Machines, SMC Machine & Equipment’s for composites industry.
Since the inception, quality has been the sole guiding force. Our high quality components and workmanship accepted by the expanding Indian composites industry and overseas customers. The company has became a Global Supplier of composites machinery and having strong customer based in countries like USA, UK, RUSSIA, IRELAND, ARGENTINA, MEXICO, ITALY, INDONESIA, UAE, SAUDI ARABIA, QATAR, TURKEY, EGYPT, UKRAINE, NIGERIA.
The company works with the motto of providing excellence and state of the art technology to the composites industry
Preview
91, Shivam esate Phase II, G.I.D.C,Industrial Estate, Chhatral, Gandhinagar,
Gandhinagar - 382729
Gandhinagar - 382729
Contact Details

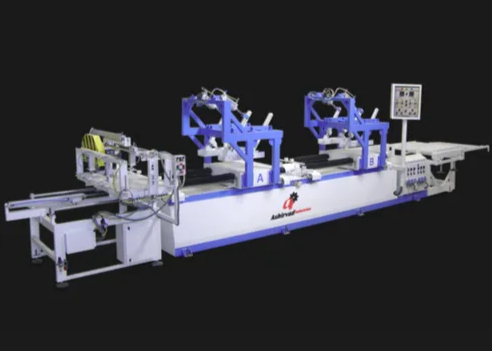

Hydraulic Pneumatic Actuating Mechnical Gripper
This machine is suitable for producing G.R.P. (Glass Reinforced Plastic) Sections in different shapes & sizes like Angle sections, ‘C’ Channels, Hollow Rectangular and Circular-Tube Sections, Solid Rods with lower profile size compare to Reciprocating Hydraulic machines,
As this machines are operating by mechanical traction pulling having lower pulling force in specified models.
Further this machine required higher change over time and maintenance during operation.
Technical Specifications
Model
Pulling Capacity 1000 kgf. - 4000 kgf.
Product Size Range
Width X Height 6mm X 3mm - 125mm X 50mm
Pulling Speed mm/min 0.02 Meter/Min. - 4.0 Meter/Min.
Die Clamping Bed 800mm [W] X 1000mm [L]
Puller Width 100mm - 300mm
Pulling Action Mechanical Power Transmission and chain with pulling pads
Clamping Force By Hydrauilc Cylinders
Heating Zone 3 - 4 Nos.
Electrical Power Required 2.0 - 3.5 kW.
Heating Requirement (Depending up on Size of mould)
Compressed Air Required 3-4 CFM at 5 -6 Kg/Cm² Pressure.
Approximately Overall Dimensions Length : 2500-3000mm
Width : 600-1100mm
Height :2100mm
