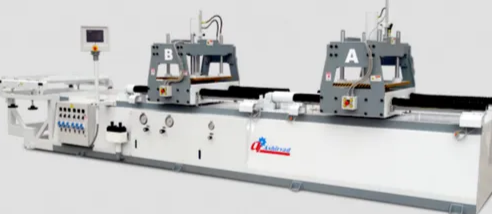

Double Platen Vertical Hydraulic Clamping
This machine is suitable for producing G.R.P. (Glass Reinforced Plastic) Sections in different shapes & sizes like Angle sections, ‘C’ Channels, Hollow Rectangular and Circular-Tube Sections, Solid Rods etc.
Direct acting vertical hydraulic clamping is more preferable to work with thick wall flat and wider profiles rather than thin wall hollow profiles.
Single platen vertical hydraulic clamping with wider area allows larger width profiles and single profile option or multiple cavity similar profiles within same clamping area.
Double platen vertical hydraulic clamping allows different profiles width and height clamping in each puller as well as both platen can be engaged for one wider profile within specified limit of clamping area.
Technical Specifications
Model AIHP-HGR-06 AIHP-HGR-08 AIHP-HGR-10 AIHP-HGR-12
Pulling Capacity 6000 kgf. 8000 kgf. 10000 kgf. 12000 kgf.
Product Size
Width X Height 350 X 100 500 X 150 600 X 150 650 X 200
Pulling Speed
mm / min 80 - 1400 80 - 1400 80 - 1200 80 - 1200
Gripper Length 500 mm 500 mm 500 mm 500 mm
No. of Grippers Single Platen Single Platen Single Platen/Double Platen Single Platen/Double Platen
Heating Zone 4
[ 16 Amp. Each ] 6 – 9
[ 16 Amp. Each ] 6 – 9
[ 16 Amp. Each ] 6 – 12
[ 16 Amp. Each ]
Moving Puller Size
Width X Length mm 800 X 650 800 X 650 800 X 650 800 X 650 & 1000 X 650
Puller Stroke in mm 700 800 800 800
Die Clamping Area
Width X Length mm 800 X 1000 1000 X 1000 1000 X 1000 1000 X 1000 & 1200 X 1000
Electrical Power Req. 2.7 kW. 3.3 kW. 4.1 kW. 4.8 kW.
Overall Dimensions
L X W X H Meter 6 X 1 X 1.5 6.2 X 1.2 X 1.6 6.2 X 1.2 X 1.6 6.2 X 1.4 X 1.6
