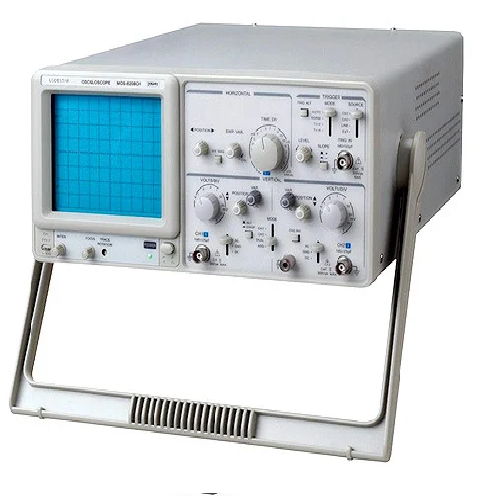

Analog Oscilloscope
Specifications:
Horizontal system
Sweep time: 0.2usec ~ 0.5sec / DIV, 20 steps in 1-2-5 sequence.
Sweep time accuracy: ±3%.
Vernier sweep time control: ≤1/2.5 of panel - indicated value.
Sweep magnification: 10 times.
x10MAG sweep time accuracy: ±5% (20nsec ~ 50nsec are uncalibrated).
Linearity: ±5%, x10MAG: ±10% (0.2s ~ 1us).
Position shift caused by x10MAG: Within 2DIV. at CRT screen center.
X-Y mode:
Frequency bandwidth: DC to at least 500KHz.
X-Y phase difference: ≤ 3° at DC ~ 50KHz.
Sensitivity: Same as vertical axis. (X-axis: CH1 input signal: Y-axis: CH2 input signal).
Z axis
Sensitivity: 5Vp-p (Positive-going signal: decreases intensity).
Frequency bandwidth: DC ~ 2MHz.
Input Impedance: Approx. 47kΩ.
Maximum input voltage: 30V (DC + AC peak, AC frequency ≤ 1KHz).
Calibration signal
Waveform: Positive - going square wave.
Frequency: Approx. 1KHz.
Duty ratio: Within 48:52.
Output voltage: 2Vp-p ±2%.
Output impedance: Approx. 1kΩ.
Additional Information:
Item Code: MOS-620B
