We are an established name in the challenging Machine Tools industry of the country as manufacturers and exporters of wide range of lathe machines. From the year of inception in 1995, we have come a long way to be reckoned as a formidable organization in the domain. We are an ISO 9001 certified company standing on the twin pillars of quality and service. Leveraging on our in depth knowledge of the industry coupled with our technologically high end production facilities we have earned for us the distinction of serving the engineering industry in critically crucial capacities. Right from the usage of top end quality raw materials like tested iron and steel to produce our range of machines down to an excellent finish of the products, we leave no lacunae, for our clients to look elsewhere for their supply. Our comprehensive range of lathe machines comprising high precision lathe machines, industrial lathe machines, second operation lathe machines, automatic special purpose machines, special purpose cutting machines, chamfering machines, CNC classic T-50 and capstan machines have won critical appreciation from our clients across the global market.
Preview
New No. 18, Old No. 1,,Balaji Nagar, Ambattur,,
Chennai - 600053
0 from 0 reviews
Contact Details

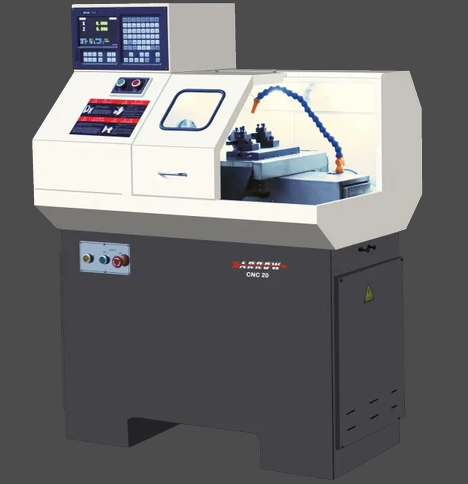

Small Cnc 20 Machine

Small Cnc 20 Machine

Z axis Linear Guideway HGH 20 Coolant Capacity 120L X axis Ball Screw 333*1605 Z Axis Motor Power 0.4KW Maximum Swing Diameter 200mm Z travel 200mm Minimum Setting Unit 0.001mm X Pulse Equivalent 0.0005mm Maximum Program Size plus/minus 9999.999 Brand Arrow Z Pulse Equivalent 0.001mm Cutting Speed 1-4000mm/min Usage Industrial Spindle Speed 0-5000r/min X axis motor Power 0.4KW Lube Motor Power 25W Spindle Center Height From the Ground 1000mm Rated Voltage 3Phase Ac 380V Z axis Ball Screw 400*2006 Z Rapid Traverse Speed 18000mm/min Total input power 3.2KW Z axis Motor 400W Absolute Servo Motor Machine Weight 700Kg System BYSK YZ150 Rated Frequency 50HZ Guide Way Type Linear Guide way Spindle Through Diameter 21mm X Rapid Traverse Speed 15000mm/min Type CNC 20 Motor Power 0.12KW Spindle Motor Power 2.2KW Maximum Machine in Diameter 20mm Tool Shank 16*16 Lube Capacity 1L X travel 300mm X axis Linear Guideway HGH20 X axis Motor 400W absolute Servo Motor Input air Pressure 0.4-0.6Mpa Country of Origin Made in India Small contact bar feeder cnc lathe for high volume small and medium size job dia 20/25 mm . Can do with bar feeder or single piece autoloading
