Arjun Engineering Works
Established in the year of 2007. We “Arjun Engineering Works” are a leading Manufacturer, Supplier, Exporter, Wholesaler, Retailer of a wide range of Hydraulic Press Machine and Power Press etc.
We direct all our activities to cater the expectations of customers by providing them excellent quality products as per their gratification. Moreover, we follow moral business policies and crystal pure transparency in all our transactions to keep healthy relations with the customers.
For our accomplishment story, we are grateful to Our CEO Mr. Bharat Sardhara, whose continual backing and direction have been useful to us for attaining exponential development in the current market
Preview
Survey No-70, Plot No - 46 To 48, Arjun Industrial Zone,Tal-Kotda Sangani, Padavala Rajkot,
Rajkot - 360024
Rajkot - 360024
Contact Details

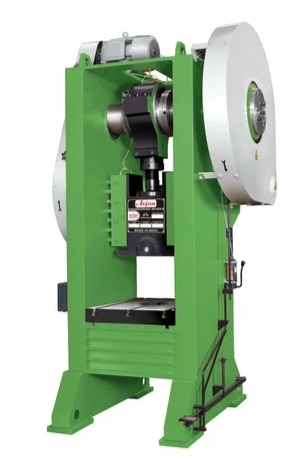

H Type Power Press
Minimum Order Quantity 1 Piece
Capacity 100 tons
Power Source Mechanical
Usage/Application Industrial
Type Of Press H Frame Press
Load 100 Ton
Automation Grade Semi Automatic
Material Mild Steel
Brand Arjun
Surface Finishing Polished
Country of Origin Made in India
Categories Press
FRAME CONTRACTION :
High Speed Press Fabricated From IS-2062 Graded Rolled Steel Plates. Frame Is Deeply Reinforced and Fines Machines after Stress Reliving. The Interlocked Design Put The Direct Support To Frame. These Frames Are Strain Free And Eliminate Welds At Load Supports. Thus The Accuracy Of The Machine Is Never Disturbed.
RAM SLIDE :
Ram Slide Is Made From Seasonal High Grade Casting Duly Ground For Friction Free Travel Through Slides, Ensuring Longer Life Of Die And Easy Operation.
GEARS :
Gears Are Of Steel Cast Of Fabricated. Gear Teeth Are Generated By Precision Hobbing Machine.
CRANK SHAFT :
The Crank Shaft Is Made Form EN-8D/EN9 Steel Round Bar. It Has Been Ground Finished On Bearing Surface. The Main Crank Shaft & Eccentric Bearings Are Covered, With High Quality Of Phosphor-Bronze Or Gun Metal Bushes And Lubrication Oil Grooves For Smooth Functioning.
CLUTCH :
The Clutch Is Made Form EN-8D/EN9 Steel Round Bar, The Rolling Key is Made From EN24 Material & With Proper Heat Treatment to Ensure Trouble Free Long Life & Give Continuous Stroke for Mass Production.
LOAD (FLY) WHEEL :
Properly Sized Flywheel Is Made Of High Grade Cast Iron, For Strong And Releasing Adequate Energy For The Pressing Operation, And Properly Balanced For Smooth Running.
MAIN AND PINION SHAFT :
Shaft Is Made Of Special Alloy Steel Machined To Close Accuracy And Fitted In Bronze Bushes For Smooth Working, Longer Life And Accuracy.
BED :
Bed Is Made Form High Grade Heavy Duty Cast Iron And Properly Seasoned. They Are Perfectly Aligned with Ram to Obtain High Accuracy and Precision Press Operation.
