Apex Air Systems
Established with an innovative concept for Fabrication Works Apex Air System, the dominant Fabricators, Service Provider, and Manufacturer firm has pioneered the industry since 2010. With a mission to create a promising baseline, we are engaged in broadening our industrial repute by presenting a highly beneficial range of Machining Job Work, Laser Cutting Services, Heavy Fabrication Works, Light Duty Fabrication Work, Vessel Fabrication Services, Hoppers Fabrication Services, Industrial Structural Fabrication, Screw Conveyor Fabrication Service, etc.
A large number of clients from diverse industrial terrains cherish our offered products for their comprehensive attributes of heavy-duty construction, industry-proven design, smooth surface finish, easy installation, and superior strength. In addition to this, we are leveraging advanced metal fabrication methodologies to become the most trusted entity offering custom fabrication services with acute professionalism, a well-timed approach, and a client-focused approach.
Our company was founded with the intent to present top-rated products and services that reflect our competency. Considering the dynamic marketplace we are investing in revolutionary fabrication techniques. Our CNC-based infrastructure is fully equipped with hi-end punching, bending, and welding techniques along with next-generation press brakes and a computer-aided platform for design and fabrication.
Furthermore, to fulfill the promise of top-rated performance we make sure to augment our knowledge resources by conducting rigorous R&D activities.
Preview
217/2 Surya Nagar, East Thottam,Ondipudhur,
Coimbatore - 641016
Coimbatore - 641016
Contact Details

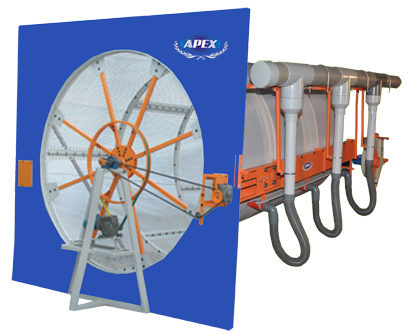

Automatic Rotary Drum Air Filter
Filter Type Rotatory Air Filter Filtration Medium Material Synthetic
Fiber Material Mild Steel Usage/Application Industrial Automation
Grade Automatic Blade Material Aluminium Frequency 50 Hz Size / Diameter 6
feet dia to 12 feet dia A rotary air drum filter is prefered wherever a fine
filtration of the micronics dusts particles and re-circulation of the department.
Rotary air drum Filter of size 8` dia x 12`Long Filter is made up of Perforated
Sheet with suitable supporting arrangements made out of mild steel with duly
powder Coated. Mild Steel outer fixing frame for the above in duly powder coated
. Gear box assembly connected with 0.5 HP motors. Suction Nozzle
connected with 2HP Blower for waste collection and 0.5 HP Screw
Cyclone for Compacting the waste. Mild Steel collection box with
grouting arrangements duly powder coated. PVC pipeline and flexible
hose for dust material Suction. Imported Nylon Mesh covers a perforated
sheet for long life for dust Filtration. The dust removed from the filter
is collected in the collection bag. The salient featurs of rotary air disc
filter are: It works at very low filtration velocity. Cleaning the filters
automatically. Maintain constant output of exhaust systems and uniform
R.H/Suction maintain inside the department. Heat and fluff removal from
the department is steady without flictuation. Improves the humidification
performance inside department and reduces the files thereby improving
the yarn quality. Impeller efficiency normal. The fluff is collected
in an open type bag collector / compacting system. Imported filter media
cloth covers drum filter for dust filtration.
Coimbatore - Tamil Nadu
