Apar India
Welcome to Apar India, your trusted partner in machine manufacturing. With over 40 years of experience in the industry, we have been at the forefront of delivering precision machines and tool sharpening accessories since our establishment in 1983. Our expertise lies in manufacturing Tool & Cutter Grinding Machines and a wide range of Tool Sharpening accessories, catering to the diverse needs of our customers throughout India.
At Apar India, we are driven by our commitment to precision, simplicity, and economy. Our designs are carefully crafted to adhere to these customary guidelines, ensuring that our machines not only deliver exceptional accuracy but also provide ease of use and cost-effectiveness. We understand the importance of efficiency and productivity in your manufacturing processes, and our machines are meticulously engineered to optimize your operations.
Preview
B-50 G. T.,KARNAL ROAD INDUSTRIAL AREA DELHI, Azadpur,,
New Delhi - 110033
New Delhi - 110033
Contact Details

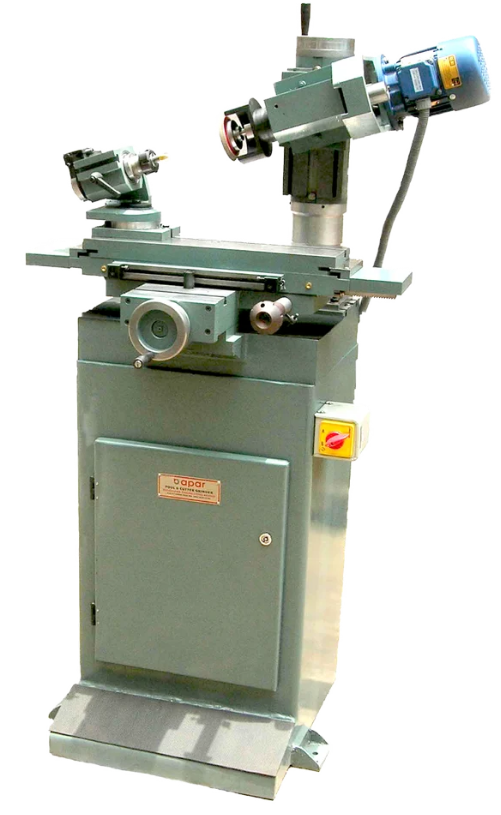

Apar T-480 Tool & Cutter Grinding Machine
Brand APAR
MAX. LENGTH BETWEEN EXTENDED CENTRES 500MM
GRINDING SPINDLE SPEED 3600 RPM
GRINDING SPINDLE SPEED (optional AC drive) N.A.
C.D. OF "T" SLOTS ON WORKTABLE N.A.
SURFACE OF WORKTABLE 500MM X 130MM
SPINDLE VERTICAL SHIFTING AREA BY DOUBLE SLIDE (OPTIONAL) 100MM
PILLAR SHIFTING RANGE ON REAR SURFACE 480MM
HEAD SWIVEL RANGE (FOR TILTING HEAD MODEL) 15 DEGREE EACH SIDE
DIMN. OF WOODEN PACKING CASE (H X W X T) 1520 X 900 X 720
VERTICAL TRAVERSE 120MM
LEAST COUNT OF X & Y GRADUATIONS 0.01MM / 0.02MM
NET WEIGHT (APPROX.) 350 KG
Floor Area Covered 575 X 625 MM
MAX. LENGTH BETWEEN STANDARD CENTRES 325MM
LONGITUDINAL TRAVERSE 275MM
CROSS TRAVERSE 125MM
SWIVEL RANGE OF TOP WORKTABLE 90 DEGREE EACH SIDE
GRINDING MOTOR 0.5 H.P., 3 PHASE
SWIVEL RANGE OF HEAD PILLAR 360 DEGREE
