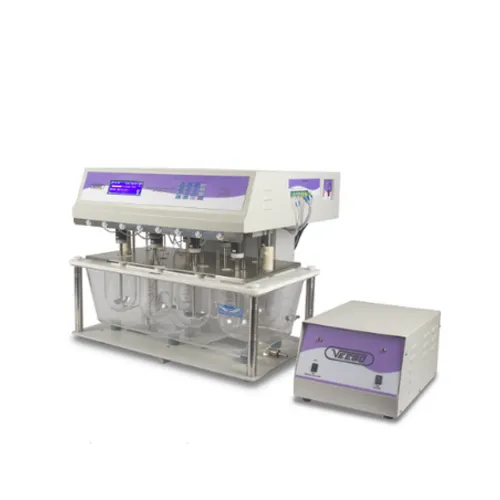

Vda-8d (Arm)-Microcontroler Based Dissolution Test Apparatus-Veego
Brand VEEGO
Usage/Application Laboratory
Model Name/Number VDA-8D (ARM)
Display LCD (240 X 64)
Capacity 8 Baskets
Technical Specifications:
- 8 Nos. Easy to attach and detach `Press Fit’ wobble free Stirrer shafts.
- 8 Nos. simple attachable or detachable Paddles assembly (USP II).
- 8 Nos. Baskets with simple attachable or detachable assembly (USP I).
- Water Circulating Pump to maintain constant temperature of water-bath.
- 8 Nos. Clear Dissolution Glass Vessels.
- Molded Water Bath with non-corrosive Tank plate.
- An external Probe to indicate vessel temperature.
- Bank of 12 operator names with individual password.
- 149 Test Methods with 24 different time intervals for sampling.
- Large Graphic LCD (240 X 64) to indicate set parameters like: RPM, Vessel Temperature, time interval, test time, etc.
- Wobble and vibration free instrument.
- Over temperature protection for Heater through software as well as hardware.
- Precise individual vessel centering system.
- Password protection at different levels.
- Facility to review set parameters.
- Nonvolatile memory
- Serial printer port for connecting dot matrix printer.
- On line / off line print facility.
- Date and product selection in off line printing.
- Facility to enter Company name on the test report.
- Memory to store 48 test records.
- Both, user friendly key board and PS-2 key board incorporated for easy data entry.
- Power failure indication program is incorporated.
- RPM: 25 TO 200.
- Temperature Range: 30 .0ºC
– 40. 0ºC with accuracy ±0.2ºC.
- Wake-up mode to turn on the heater on predetermined time intervals.
- A motorized tray with sensors moves down as per set time and sensors dip into individual vessels and measure the temperature which is indicated on the display. Then it comes out of vessel.
- A printer is provided to print temperature of all 8 vessels.
- The tray carrying 6 sampling probes moves down as per set time and user defined volume (500 ml or 900 ml), probes dip into individual vessel at specified height. User can then withdraw required volume of sample manually with help of syringe. Tray will move back out of vessel, causing minimum disturbance
