Established in the year 2015 at Ahmedabad (Gujarat, India), we “ADK Engineering & Solutions” are a Partnership firm engaged in Manufacturing, Wholesale Trading, Importing an optimum quality range of Laser Cutting Machine, CNC Plasma Cutting Machine, Fiber Laser Cutting Machine, CNC Oxyfuel Cutting Machine, CNC Press Brake Machine Etc. These products are highly applauded for their features like sturdy construction, anti corrosive body and long working life.
Under the guidance of, “Mr. Harshit Shah”, we have carved a niche in this competitive industry.
ADK's team of expert engineers having great industrial knowledge are always willing to understand your requirement and provide you the best possible solution at the optimum cost saving. Our team of experts has mastered in providing cost effective, user friendly and customer oriented solutions.
Preview
A- 504, Empire,Business Hub Sola, Ahmedabad,
Ahmedabad - 380060
Ahmedabad - 380060
Contact Details

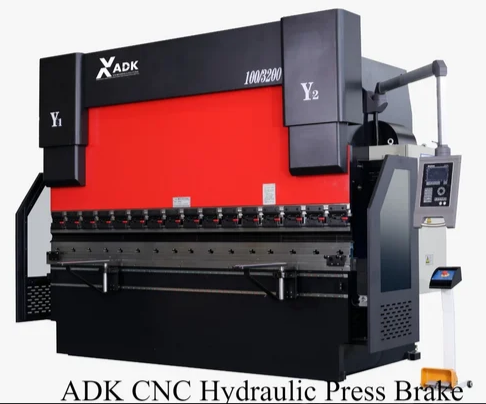

ADK CNC Hydraulic Press Brake
Automation Grade Automatic
Brand/Make ADK
Electrical components Schneider from France Brand
Main Motor Siemens From Germany
Dimensions (L x B x H) 4200 x2100 x3800 mm
Stroke 250mm
CNC press brake has a solid and rigid frame designed ensuring minimum deflection even during full load operation.
new eu streamlined design
the whole frame of the press brake adopt integrated welding, and by tempering to eliminate the internal stress. .
basic unit equipped with cpu amd geode etx-lx800 500mhz, 128mb dram including graphic colour 10” touch screen display (1024 x 600 pixels resolution 128 mb silicon disk interactive 2d graphic editor for work-pieces and tools data entry 2d graphic display of machine frame, work-piece and tools manual 2d graphic identification of the best bending sequence(option 4 fast counting circuits for line drive 0-5vdc differential encoders or npn/pushpull. The encoders are powered at 5vdc (max 200ma per channel 4 analog outputs (±10v) with 13bits + sign resolution 4 digital inputs for the zero micros 4 analog inputs, 12 bits resolution, ranges 0÷10v, 0÷5v 2 general purposes analog outputs, 0÷10v (8 bits resolution 32 digital inputs (24vdc 32 digital outputs (24vdc, 0,7a max. ) protected against overload and short-circuits 2 serial port rs232 1 can port with 9 pins subd f connector 1 ethernet port 10/100 mbit (lan connection 1 vga port for external monitor connection 2 usb (2. 0) ports. 24vdc power supply
