A P Motronix Pvt. Ltd.
Established in the year 1985, at Hyderabad, Andhra Pradesh, India, “AP Motronix Private Limited” are engaged in manufacturing and supplying of a qualitative range of Engineering Products. Our offered range includes Boiler Parts, Industrial Geared Motors, Control Valve Actuators, Electric Actuators, Geared Servo Motors, Stepper Motors, Modulating Motors/System/Mechanism, Solenoids and Torque Synchros.
Preview
3-18-3, Ramanthapur,,
Hyderabad - 500013
Hyderabad - 500013
Contact Details

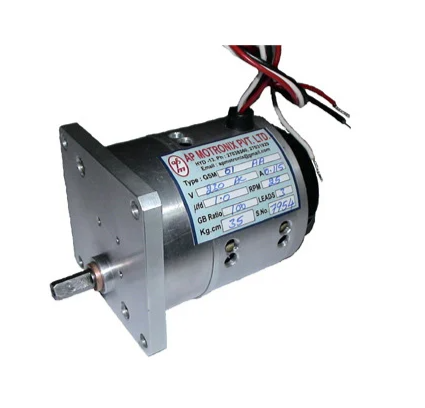

AC Geared Servomotor ,APM-GSM 60 series
Type GSM 60 Series AC Geared Servo Motors are permanent split capacitor induction motors. No brushes or starting switches are employed. The low inertia servo-type motor is specifically designed for servo applications requiring relatively fast response. Its two windings are referred to as the fixed or reference phase (red leads) and the control phase (black leads). In the normal mode of operation a fixed voltage is impressed on the reference phase and a variable voltage, in quadrature to reference voltage is given to the control phase. The speed and direction of rotation then depend on the magnitude and phase (±900) of control voltage. However, by using a phase splitting capacitor it is also possible to operate the motor (reversibly) from single phase supply.
Hyderabad - Telangana
