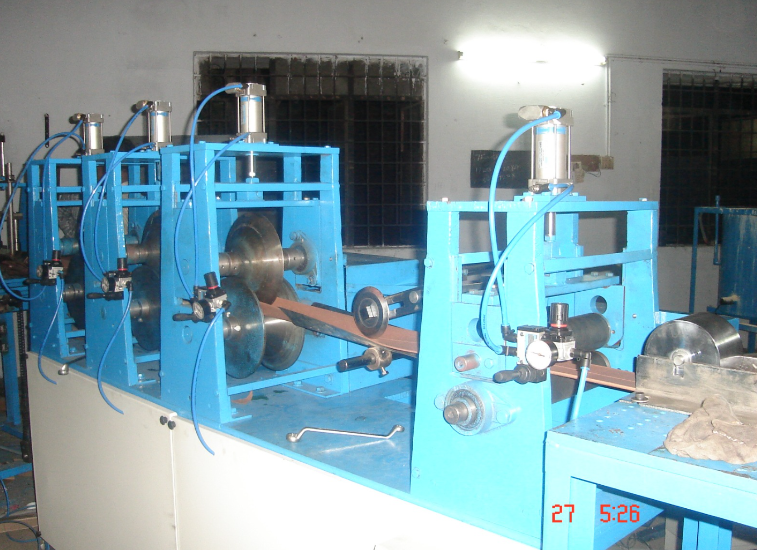

Paper Edge Protector Angle Board making machine
For manufacturing paper angles (edge protectors) in the range of 25 × 25 × 3 mm to 100 × 100 × 6 mm, you’ll need a complete automatic Paper Angle Production Line designed for continuous forming and precise cutting.
Below is a structured overview of the complete machine set you described:
📦 Complete Paper Angle Manufacturing Machine Set
1️⃣ Reel Holding Stand (Unwinding Unit)
Heavy-duty multi-ply kraft paper reel stand
Hydraulic or pneumatic shaft loading
Auto web tension control system
Suitable for multiple paper reels (depending on ply requirement)
2️⃣ Glueing Unit
Automatic starch/PVA glue application system
Glue tank with agitator and temperature control
Adjustable glue coating thickness
Multi-layer glue feeding system
3️⃣ Pre-Forming Section
Paper alignment and layer pressing
Initial shaping rollers
Edge guiding system
Ensures proper bonding before final forming
4️⃣ Forming Section
Adjustable forming rollers for:
25 × 25 × 3 mm
up to 100 × 100 × 6 mm
Angle degree precision control (90° standard)
Heavy-duty compression rollers
Thickness adjustment capability
5️⃣ Online Motion-Control Shear Cutting
PLC + Servo-based motion control system
Accurate length cutting (±1 mm tolerance)
Cutting speed synchronized with line speed
Length programmable via HMI
Pneumatic or servo flying shear cutter
⚙️ Technical Specifications
Parameter Specification
Angle Size 25×25×3 mm to 100×100×6 mm
Production Speed 30–40 meters/min
Length Accuracy ±1 mm
Control System PLC + Motion Control
Cutting Type Online Flying Shear
Power Requirement Approx. 15–25 kW
Operators Required 1–2
🏭 Applications
Pallet edge protection
Packaging reinforcement
Export carton protection
Furniture & appliance protection
🔧 Optional Add-ons
Auto stacking system
Automatic glue mixing system
Thickness measuring system
Digital production monitoring
Drying system (if required)
💡 Key Advantages
✔ Continuous high-speed production
✔ Accurate servo-controlled cutting
✔ Wide size range adjustability
✔ Heavy-duty industrial design
✔ Low labor requirement
